Product Description

ⓘ Product Overview
Model NO.
VSU-TC0504
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer
Material
Plastic / Metal+PC
Bus Current
≤12 mA
Bus Power
≤ 360MW
Operating Temp
-5°C to +45°C
Specification
Bus voltage: 21-30 VDC, bus power supply
HS Code
8517699000

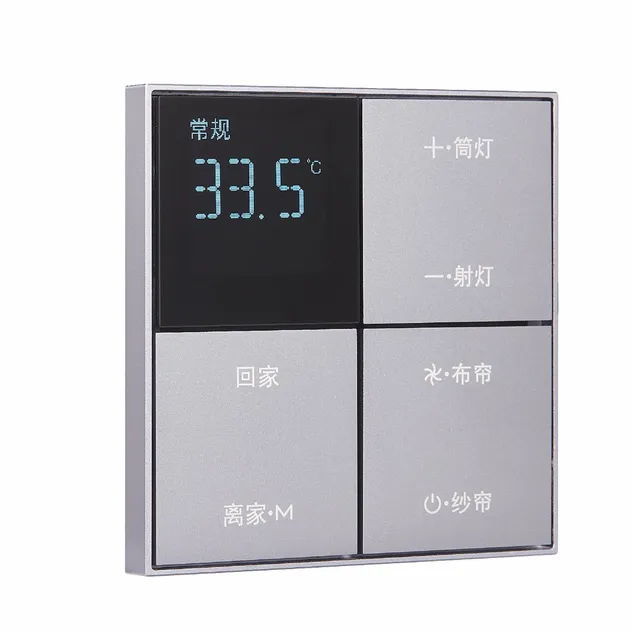

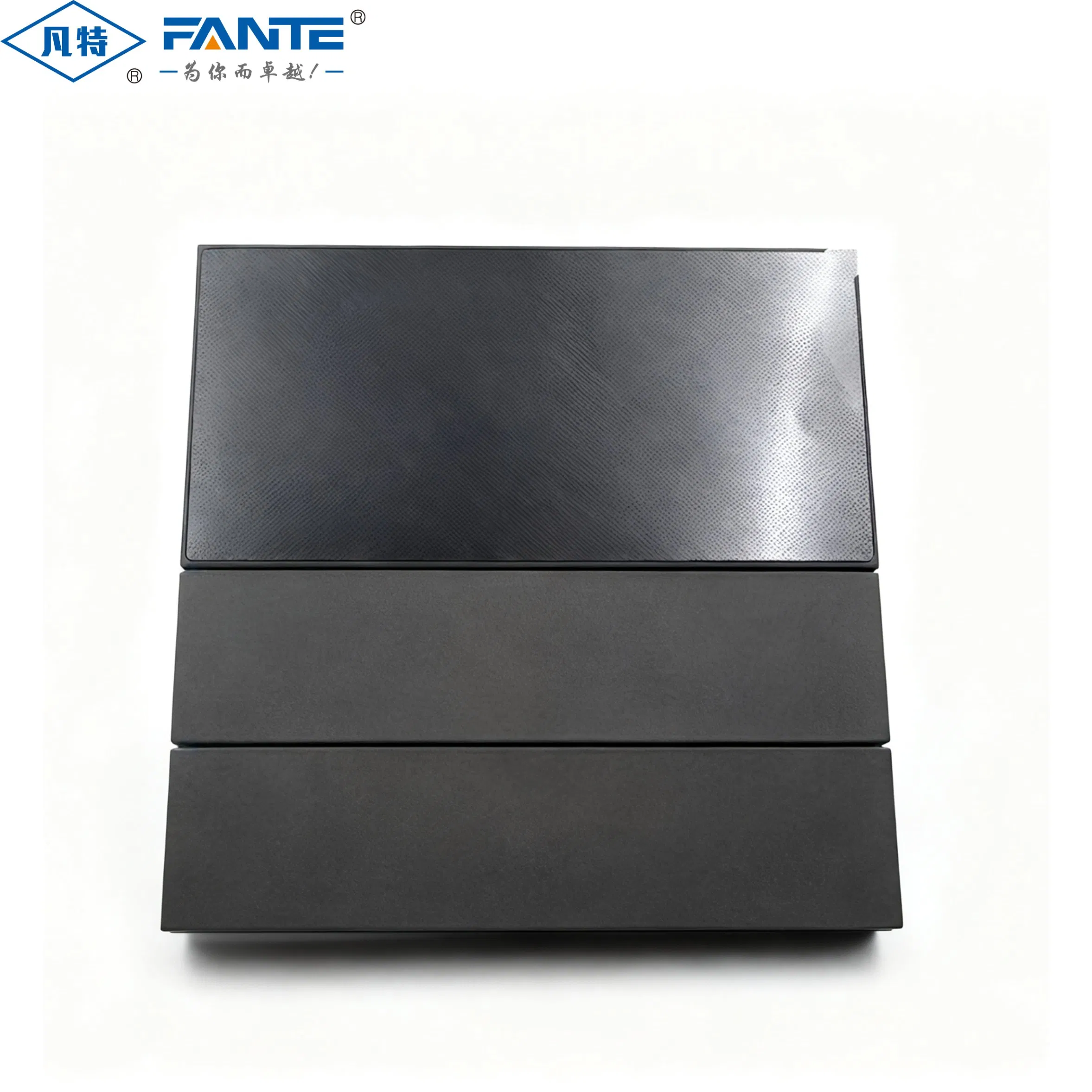

Smart Lighting System Panel 1

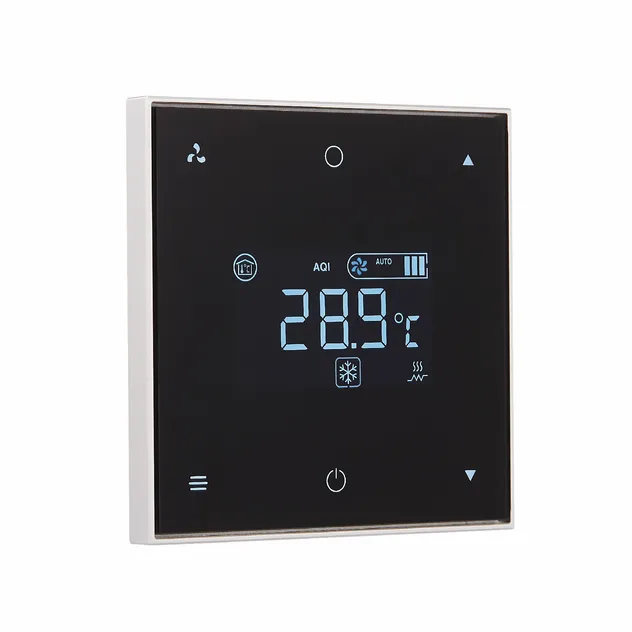

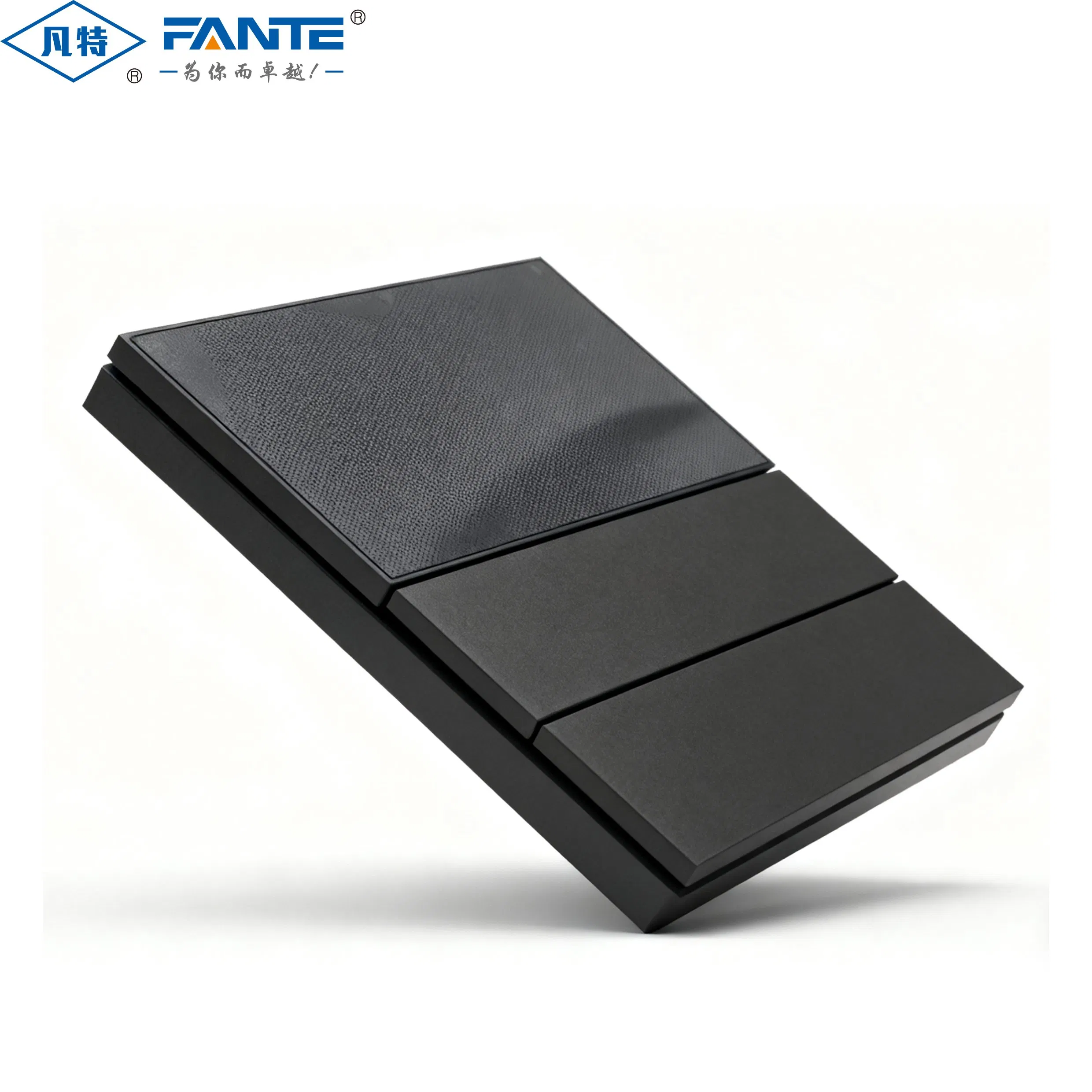

Smart Lighting System Panel 2

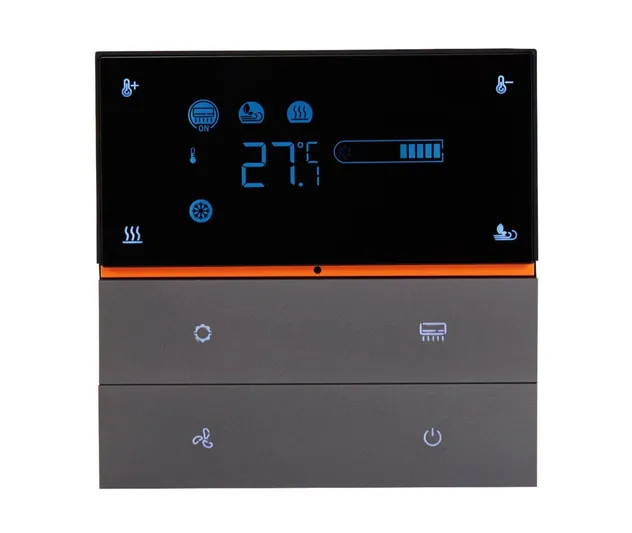

Smart Lighting System Panel 3
⚙ Flexible Customization & Parameters
Interface Functions
The KNX LCD touch panel offers an exquisite, high-end configuration that allows flexible customization of multiple interface functions, including:
  • Lighting control & Dimming (RGB adjustment)
  • Curtains, blinds, and projection screens
  • Air conditioning, HVAC, Floor heating and ventilation
  • Background music & Scene control
  • Energy display and air quality monitoring
  • Timer management
Technical Highlights
  • 4-inch 720 × 720P HD touch screen
  • Ultra-thin design with Aluminum alloy frame
  • Auxiliary power supply: 24V DC (< 60mA)
  • Communication: KNX bus system
  • Standards: CE certification, KNX certification
★ Function Description
The control panel is designed for modern building control systems. It integrates seamlessly with the EIB/KNX bus to form a simple and intuitive user experience.
  • Switching lighting, curtain opening/closing, and lifting functions with long/short press support.
  • Relative and absolute dimming output for precise light control.
  • 8-bit scene control to execute pre-set environmental modes.
  • LED indicator with multiple states (normally on/off, flashing) and adjustable brightness.
  • Programming mode via button operation for easy data downloads without removal.
  • Status and backlight LEDs with wake-up and delayed extinguishing functions.
📋 Detailed Parameters
Bus Voltage21-30 VDC, KNX bus power supply
Bus Current≤12mA
Bus Power<360mW
Shell MaterialMetal+PC
Size (H x W x D)86 x 86 x 33 mm
InstallationStandard 86 bottom box
Operation Temp-5℃ to +45℃
Relative HumidityMax 90%
📐 Dimensional and Wiring Diagrams

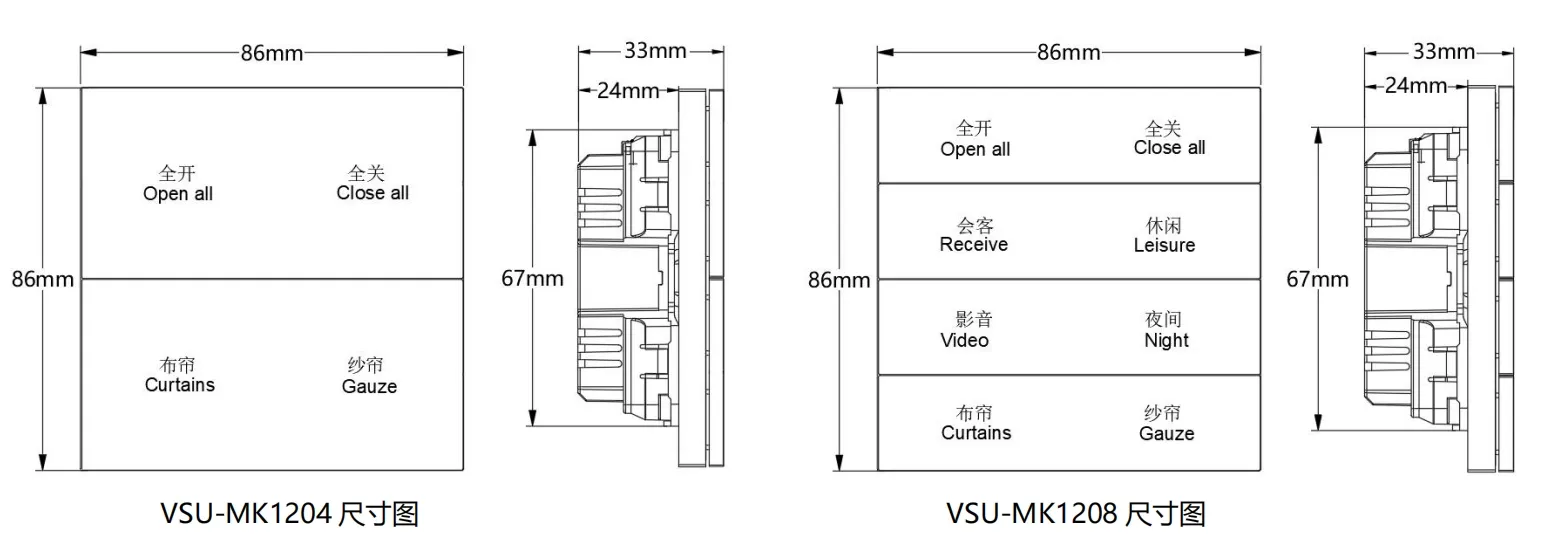

Dimensional Diagram

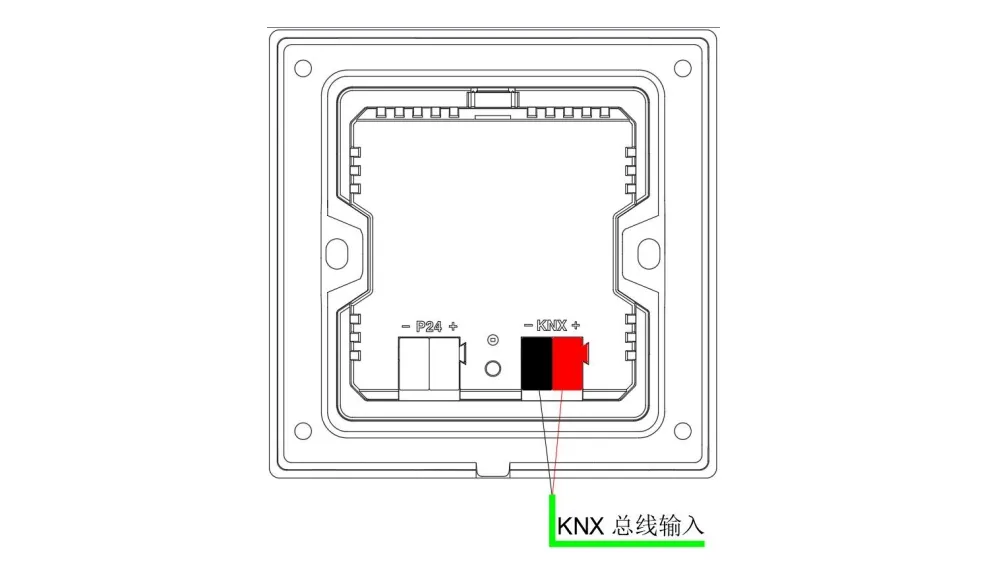

Wiring Diagram
Installation Guide
✔ Quality Assurance
Production Quality 1
Production Quality 2
Production Quality 3
Frequently Asked Questions
Q1: What are the main functions of the KNX LCD touch panel?
The panel supports lighting control, dimming (RGB), curtain and blind management, HVAC, floor heating, background music, energy monitoring, and scene control.
Q2: How is the product installed?
It is designed for a standard 86 bottom box installation and connects directly to the EIB/KNX system via the EIB bus wiring terminals.
Q3: Does it require an additional power supply?
The bus operation requires 21-30V DC from the KNX bus. Some specific configurations may use an auxiliary 24V DC supply depending on the screen and system requirements.
Q4: Can the interface be customized?
Yes, users can plan and execute functions according to their needs using ETS software (ETS4 or above) to set parameters and group addresses.
Q5: What is the typical lead time for orders?
For quantities between 1-100 pieces, the typical lead time is 5 days. Larger orders are subject to negotiation.
Q6: Are these products certified for safety and quality?
Yes, all products have passed international certifications including CE and KNX certification, ensuring high safety and reliability standards.
